Virtausmittari
Brooks Instrument 1350/D2H1D1B5C000 (0.2 - 1.2 m³/h)
SKU: 3005
In Stock
24/7 DELIVERY POSSIBLE
Warranty Information
Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Brooks Sho-Rate™ Flowmeter – Specification Table (This Model)
Manufacturer: Brooks Instrument
Product Family: Sho-Rate™

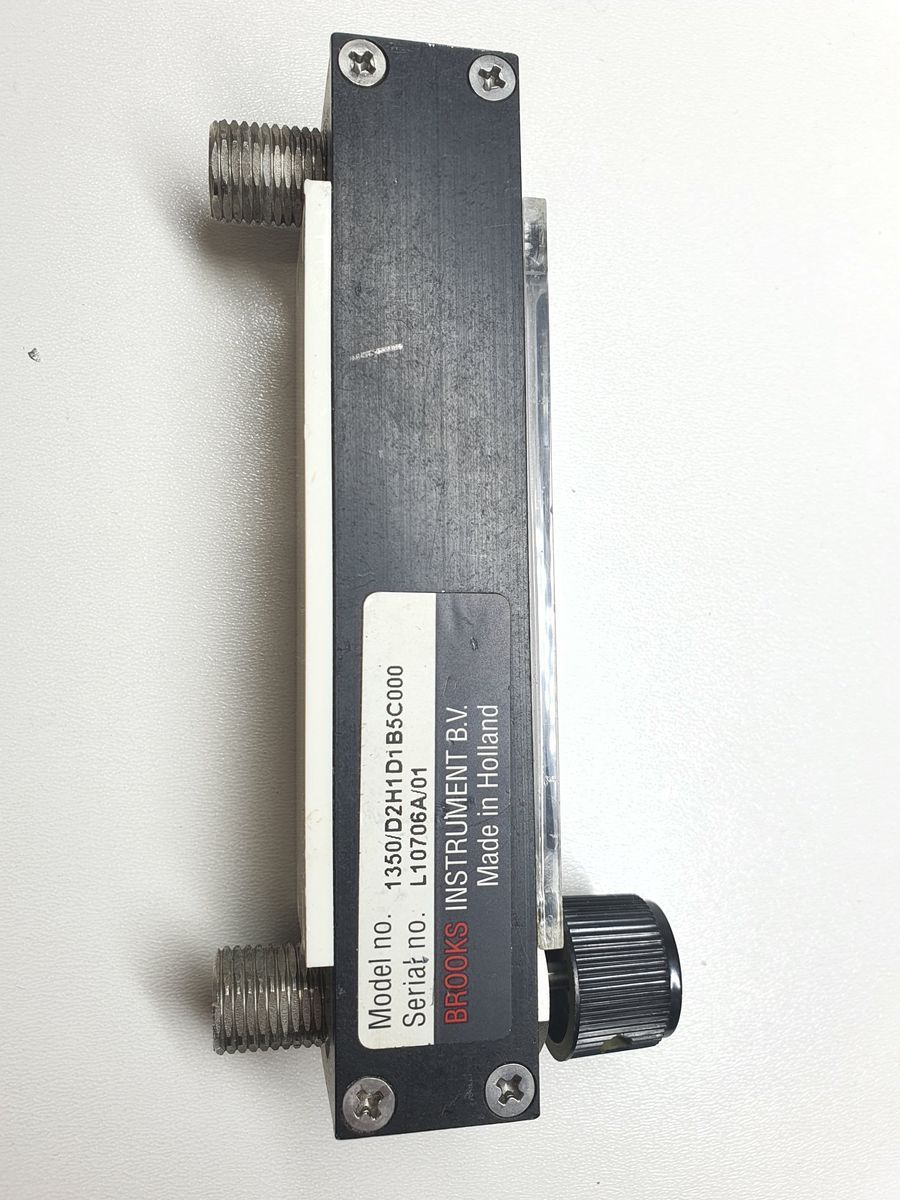

Model: 1350/D2H1D1B5C000
Product Type: Variable Area Flowmeter (Rotameter) with Needle Valve
Tube Identification: Brooks Tube 6-65
| Parameter | Specification |
|---|---|
| Measurement principle | Variable area (float position) |
| Indication | Direct visual reading |
| Measured medium | Nitrogen (N₂) |
| Flow range | 0 – 1.2 m³/h |
| Flow unit | m³/h |
| Flow reference conditions | N₂ @ 20 °C & Pa = 1.013 bar (STP) |

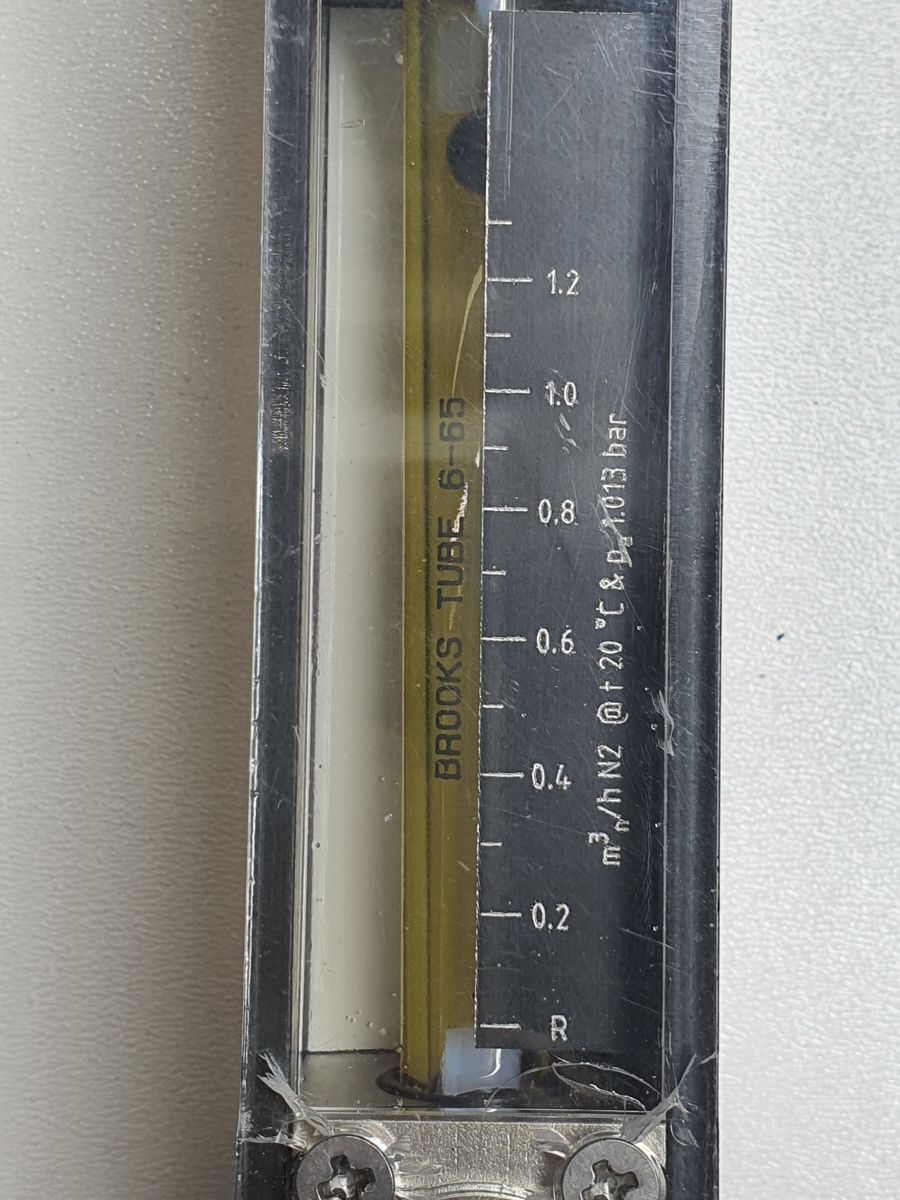

| Scale marking | m³/h N₂ @ t 20 °C & Pa 1.013 bar |
| Tube type | Brooks Tube 6-65 |
| Secondary scale | None (single calibrated scale only) |
| Accuracy | Typically ±5% of full scale |
| Repeatability | Excellent |
| Metering tube material | Borosilicate glass |
| Float material | As defined by Tube 6-65 calibration |
| Installation orientation | Vertical only |
| Reading reference | Top of float |
| Integrated valve | Yes (manual needle valve) |
| Valve location | Bottom-mounted |
| Pressure indication | None |
| Maximum working pressure (MWP) | Not visible on scale |
| Mounting | Panel mounting |
| Country of manufacture | Brooks Instrument (EU/US depending on production batch) |
×
![]()
