finder 22.32.0.024.4340
SKU: 7029
Varastossa
Takuu Tiedot
Tärkeää: All warranties are our own warranties and do not cover factory or manufacturer warranties.

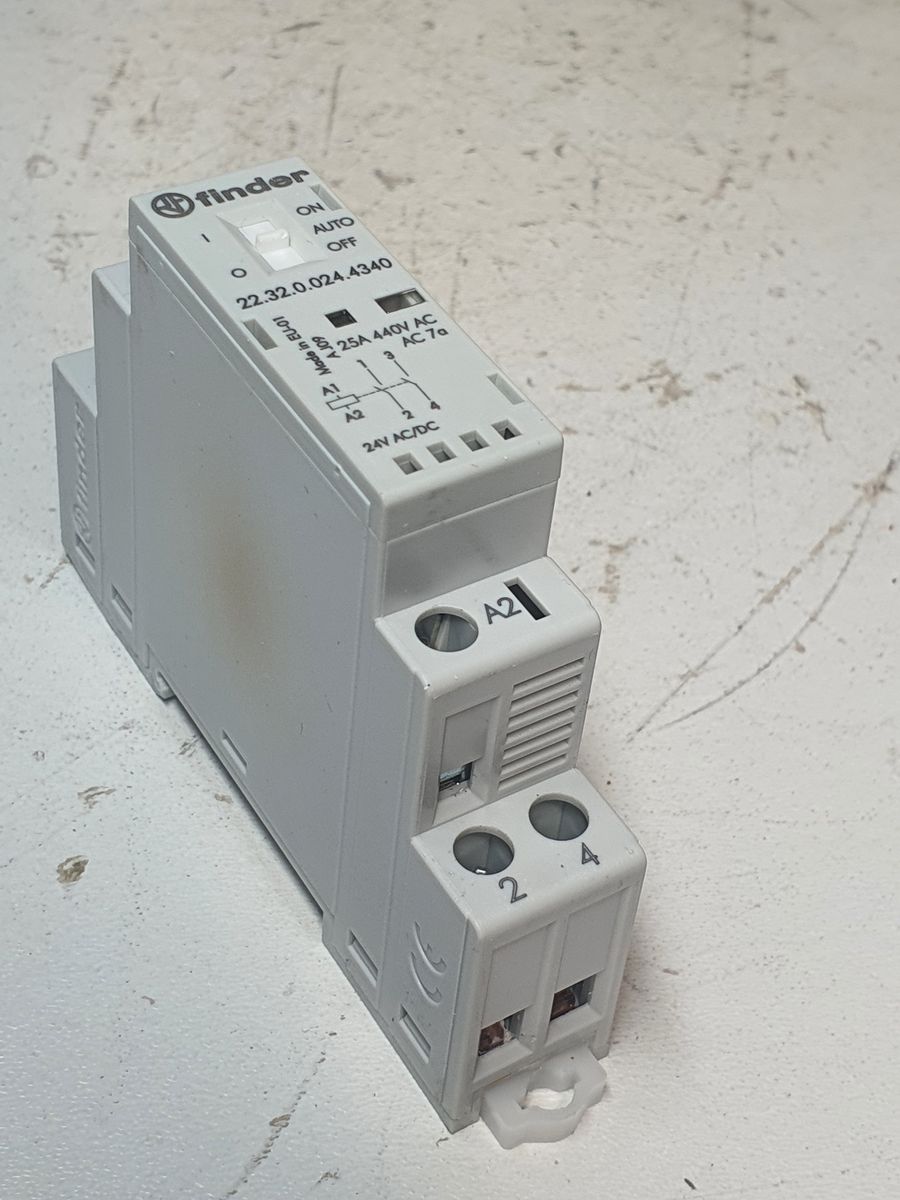

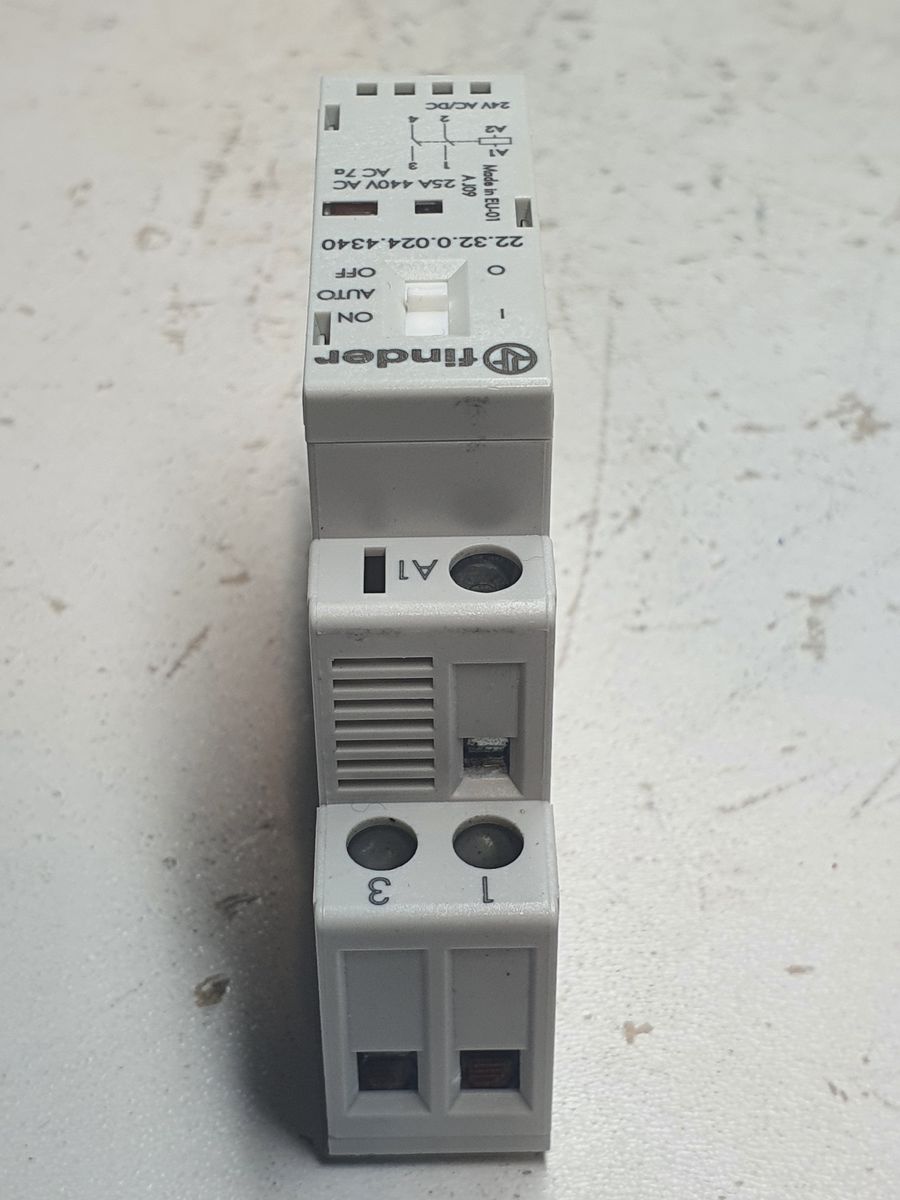

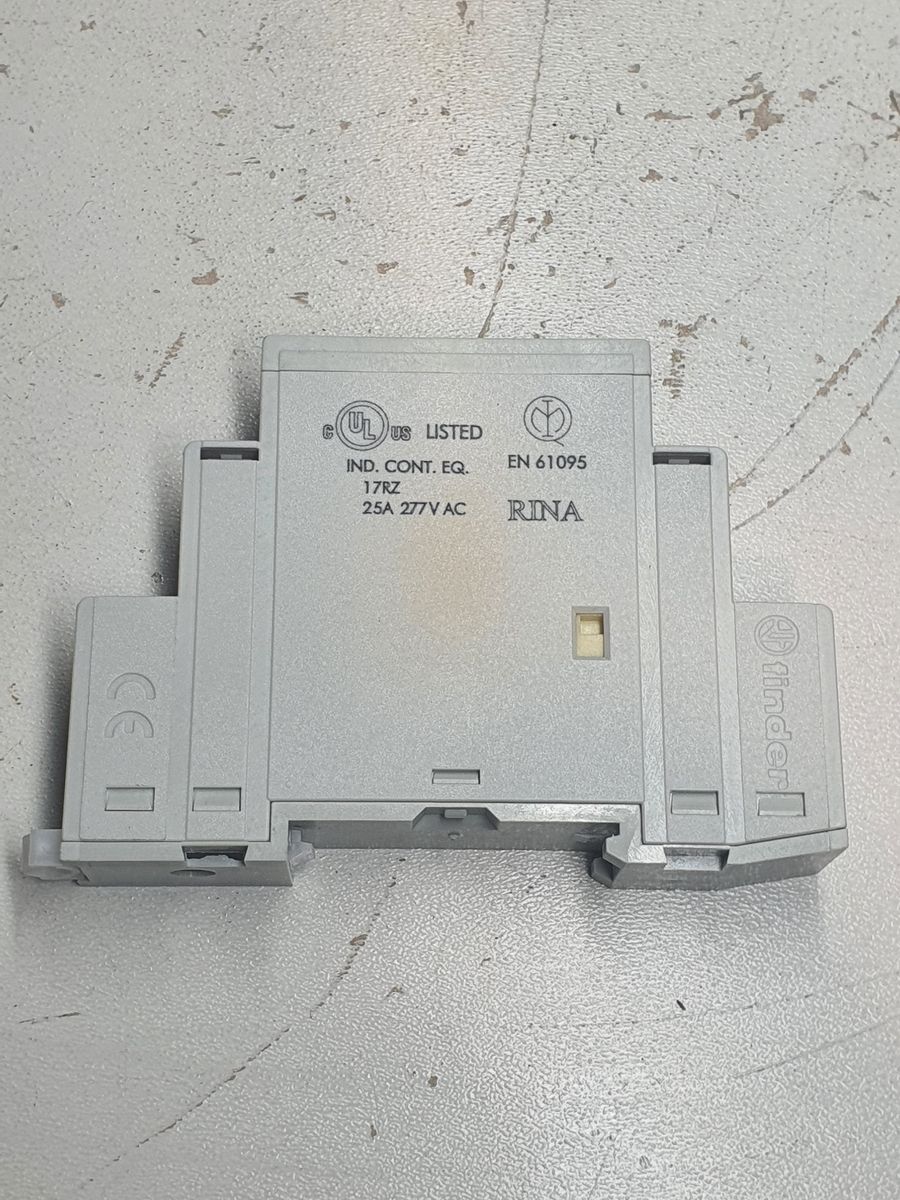

Finder Series 22 - Installation Assistant Switch 22.32.0.024.4340
Specifications – 22.32.0.024.4340
| Parameter | Specification |
|---|---|
| Rated Control (Coil) Voltage | 24 V |
| Number of Normally Open (NO) Contacts | 2 |
| Number of Normally Closed (NC) Contacts | 0 |
| Operating (Rated) Voltage | 250 – 440 V |
| Protection Rating | IP20 |
| Width in Modular Units | 1 |
| Hum-Free Operation | Yes |
| Utilization Category (EN IEC 60947-4-1) | AC-7a / AC-7b |
| Utilization Category (EN 954-1) | 1 |
| Installation Depth | 60.8 mm |
| Max. Load – Fluorescent Lamp (Duo Circuit) | 500 VA |
| Max. Load – Fluorescent Lamp (Parallel Compensated) | 200 VA |
| Max. Load – Fluorescent Lamp | 800 VA |
| Max. Incandescent Lamp Load | 2000 W |
| Day/Night Function | No |
| Auxiliary Device Possible | Yes |
| Rated Operational Current | 25 A |
| Manual Override Slider | Yes |
| Operating Voltage Type | AC/DC |
| Coil Voltage Type | AC/DC |
×
![]()
